Analogue Portable X-ray Machine for Veterinary

AX100 Portable X-ray Machine for Veterinary (Analogue), 10.4-inch touch screen. It can be widely used for equine/large animal, Companion, exotic, and mixed animal practices is easy to use, ultra-durable, and create digital images of superior quality.

Inquire Now

Product Description

Features

1.6 periods of digital LED display
2.Failure self-protection, self-diagnosis
3.High precision control of tube voltage, tube current
4.48 kinds of presupposed anatomy memory pattern choice
5.The accuracy control method of simulation and double digital loops
6.X-ray tube complete surrender by lead for protecting X-ray leaking
7.Exposure by hand switch
8.Exposure by remote control
9.Exposure by touch screen

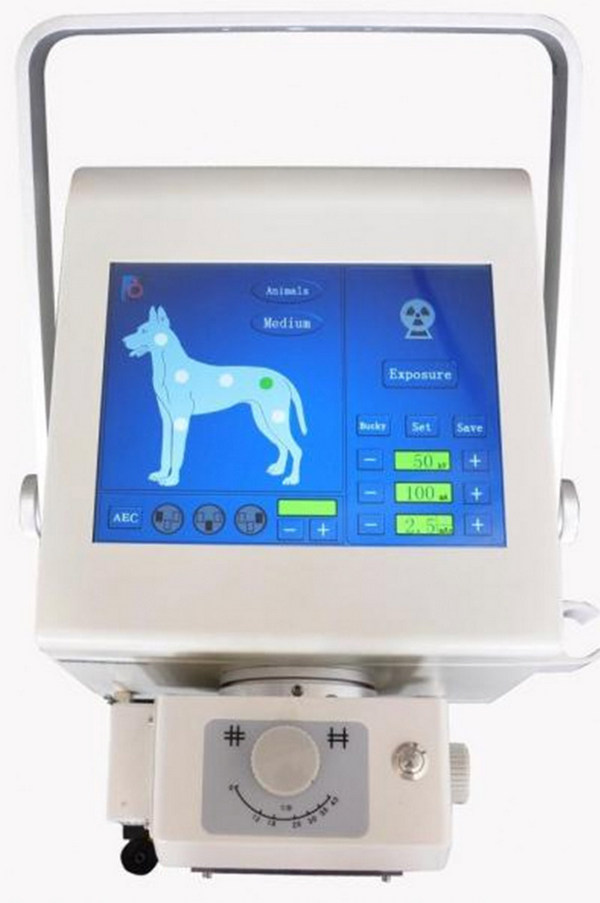

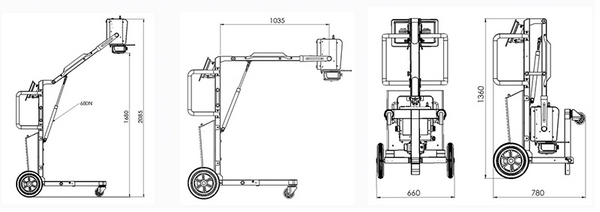

analogue portable x ray machine for veterinary 4analogue portable x ray machine for veterinary 5

Technical Specifications

Main Component
Voltage AC220V ± 22V
Generator Power 5kW
kV Range 40~110kV
mA Range 20~100mA
mAs Range 0.2-200mAs
Working Frequency ≥40kHz
Exposure time 0.01S~4S
X-ray tube Anode heat storage 56KHU
Focus 1.8mm
Inherent filtration 1mm Al/75Kv
Light source LED
Touch Screen Dimension 10.4inch
Physical Spe.
Main Unit Weight 19 kg
Dimension 290×265×230 mm

analogue portable x ray machine for veterinary 7
