Veterinary Chemistry, Electrolyte, Immunoassay And Coagulation Analyzer For Animal Health Diagnosis Producing Accurate Reference Laboratory Quality Results

Product Main Features

1.Small sample volume
The sample volume required for analysis is only 1/10-1/20 when compared to traditional chemistry analyzers.
2.Easy to Carry
5 kg. The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.
3.Less Maintenance
No maintenance consumables, such as tubing, pumps, or valves are required, which saves on maintenance expense.
4.Accurate Results
The analyzer utilizes the photometric colorimetric principle, which is superior to the dry chemistry analyzer using a light reflection principle. The accurate rotor mold guarantees consistent test sample and dilution volumes, eliminating random error and cross-contamination.

Easy 3-Steps Operation

Dilution, centrifugation, quality control, and test result printing occur automatically as steps during the sample analysis process
1.Insert Sample (l00ul blood)
The whole blood sample requires no pre-treatment. Only l00ul of whole blood, serum, or plasma is required to complete the test.
2.Insert Rotor (12 minutes running)
Easy to use in a mobile setting or the field. Key moving parts are original and sourced from US manufacturers. All fluids are self-contained within the rotor, eliminating the need for internal pumps, valves, and other vulnerable parts.
3.Read Result (immediately)
The photoelectric color-metric principle utilized eliminates random error and cross-contamination.
The analyzer quality checks and calibration occur automatically and in real-time during analysis.

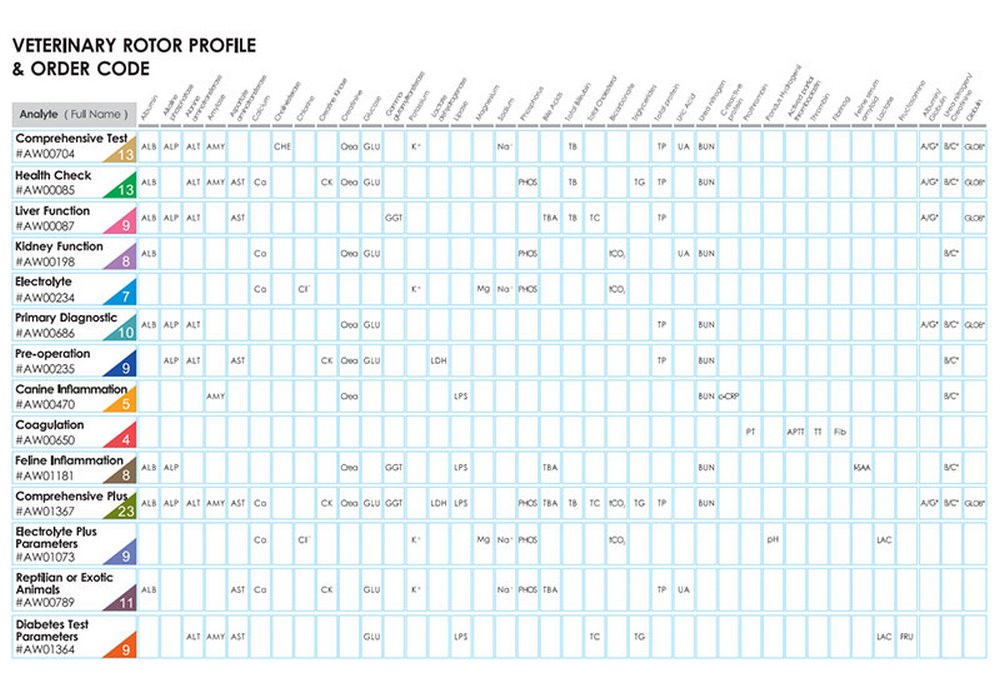

Disposable Reagent Disc

14 Veterinary Chemistry Profiles with 36 Parameters in One Solution. The single-use plastic rotor contains freeze-dried reagents and diluents with a 12-month shelf-life when stored at 2-8°C. The QR code not only contains the basic information of the rotor but also has the functionality of initializing a system update and setting the zone codes.
