3-Part Auto Veterinary Hematology Analyzer
V330 Veterinary 3-Part Hematology Analyzer. 3 part 21 parameters fully automatic hematology analyzer for Pet hospitals, Veterinary hospitals, Research institutes, and Teaching laboratories.
Multi-animal mode is available: Dog, cat, rabbit, cow, horse, sheep, rat, mice, guinea pig, pig, monkey, gerbil, hamster, chinchilla, ferret, hedgehog, camel, etc.
Product Description
Product performance
1.Support multi-species special detection mode.
2.Support parameter optimization of customized species.
3.Support up to 20 customized animal detection modes.
4.For users to choose and 10 reportable species.
Technical Specifications
1.Principles
Impedance method for WBC, RBC and PLT test and Cyanide free colorimetry for HGB test.
2.Parameters

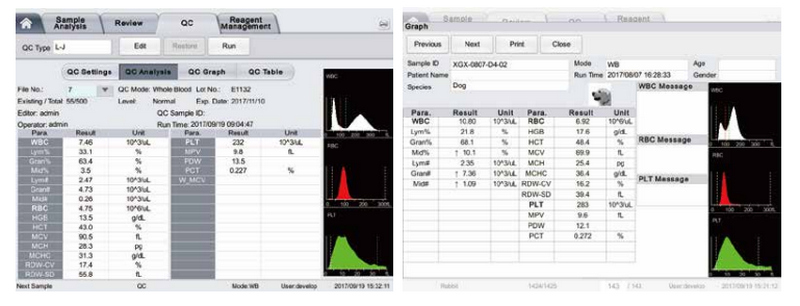

19 reportable parameters: WBC, Gran#, Lym#, Mid# Gran%, Lym%, Mid%, RBC, HGB, HCT, MCV MCH MCHC. RDW-SD RDW-CV PLL, MPV, PDW, PCT. 3 histograms for WBC, RBC and PLT
3.Throughput
Up to 40 tests per hour
4.Sample volume
17µL
5.Sample mode
Whole blood mode and pre-diluted mode
6.Storage
Up to 50,000 records
7.Repeatability
WBC: 3.0% (4.00-15.0010°/)
RBC: 2.0% (>3.50×102)
HGB: S2.0% (10-180g/L)
MCV: 1.0% (70.0-10.01/L)
PLT: for dog 6.0% (100-500×10/L)
For cats10.0% (100-500×10/L)
8.Linearity range
WBC: 0.00-200×10°/L
RBC:0.00-17.00102/L
HGB: C-2500/L
PLT: 0-3000x10L
HCT: 0.0-67%
9.Communication
Support bi-directional LIS
10.Power Requirement
100V-240V-, 50/60Hz
11.Dimension and Weight
364mm (W) x 477mm (D) x 417mm (H)
Weight: 26kg
